METAL FORMING

C Frame Presses

RH Range

Internationally regarded as the ‘quality press of choice’, the RH range boasts low frame deflection and long die life derived from the heavy press construction and massively ribbed one-piece frame. Made to order, these presses are incorporated into project-critical applications worldwide.

Design Features

    • Left to right crankshaft
    • The Rhodrive combined friction clutch and brake units is fitted to the RH Press range allowing a fast single stroking rate with the minimum of heat build-up
    • Massive press construction utilising quality materials and generous bearing surfaces guarantees minimum deflection and longer die life
    • An ergonomic and compact design to minimise space
    • Geared or ungeared models available

Saxon Range

Designed to provide excellent all-round visibility, making them the perfect machine tool for performing a second operation, hand fed work. This model has been designed with ease of maintenance as a priority, ensuring maximum machine availability in today's just-in-time world.

Design Features


    • Front to back crankshaft
    • Saxon models are fitted with Ortlinghaus actuated combined clutch and brake unit
    • Massive press construction utilising quality materials and generous bearing surfaces guarantees minimum deflection and longer die life
    • An ergonomic and compact design to minimise space
    • Geared or ungeared models available

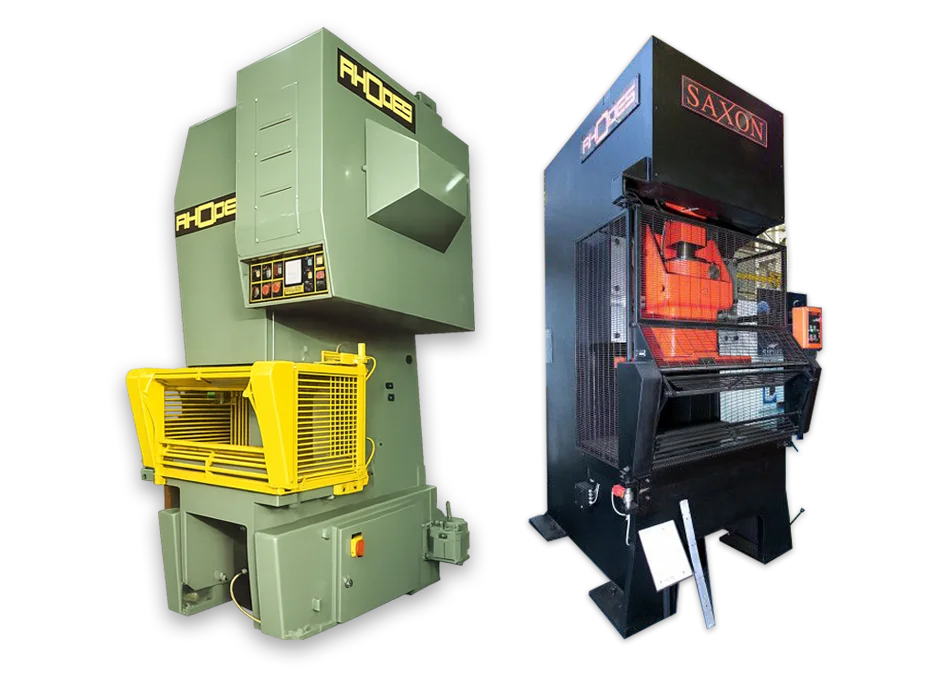

      RH Press Range Saxon Press Range

      METAL FORMING

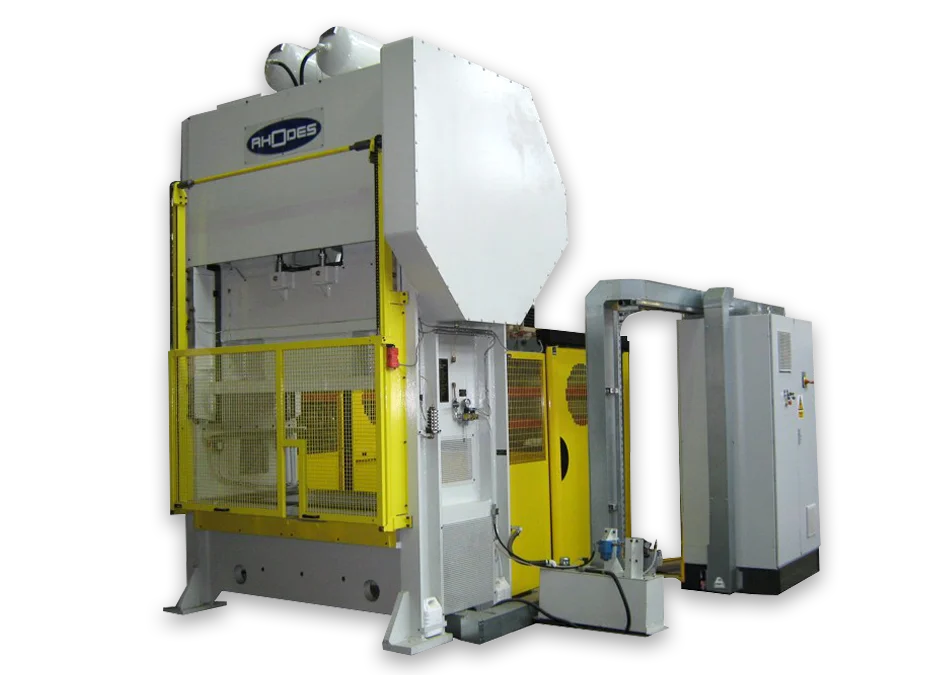

      Double Sided Presses

      Rhodes Interform’s extensive double sided press model range (DS1/DS2 range), can be controlled by either a foot switch, push button, or line signal, depending on the application and the degree of automation required. These presses are widely used by companies across the globe and are available in capacities from 40 to 400 tonnes.

       The Benefits

      • Maximum frame rigidity achieved through computer-aided frame design and finite element analysis
      • Standard extra-long slide guides and optional eight face slide guides provide exceptional accuracy and reduced tool wear
      • All presses are available with a variety of manual or automatic tool-change options
      • One-piece fabricated steel frame fully stress relieved
      • All models are available with full CNC controls
      More Information

      METAL FORMING

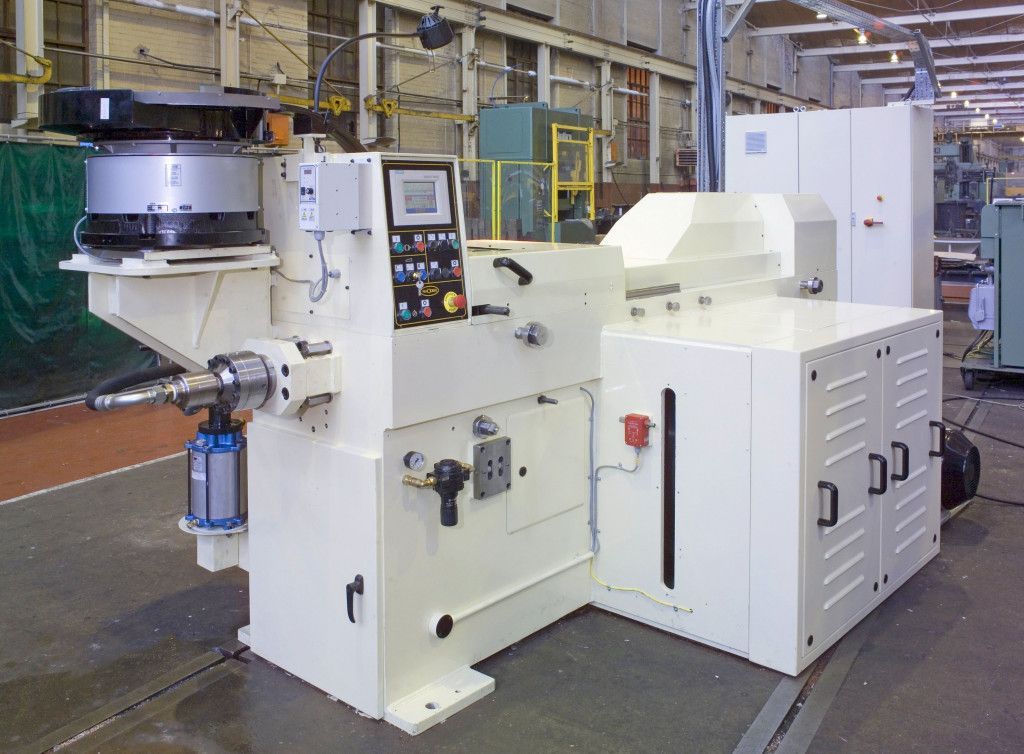

      Backward Horizontal Impact Extrusion Presses

      The Rhodes KJX range of Horizontal Impact Extrusion Presses are designed for the production of non-ferrous (recyclable) tubes and cans such as battery cases, toothpaste tubes, cosmetics, machine pharmaceutical tubes and aerosol cans.

      Press capacities range from 5 to 1,000 tonnes, enabling the correct machine to be selected for each application.

       Additional Features

      • An AC variable drive motor is used to ensure that automatic speed changes are performed quickly and safely
      • An ergonomically designed tool space area with improved accessibility
      • Precision-engineered double helical gears rotating in a sealed oil bath
      • A can take-off system, which is independently adjustable for timing and protected by an overload clutch
      • The highly successful 'Ortlinghaus' combined pneumatic friction clutch and brake unit
      • A fully automatic 'full flow' recirculating oil lubrication system using internally machined oilways, thereby reducing the need for vulnerable flexible pipework
